USB DAC
Put away all
Basic Parameters
Model
Play/Play CD Edition
Body Material
Aluminium alloy
Display
5.5” LCD Touchscreen
CD-ROM
Only the CD Edition includes a CD-ROM
DAC
AK4493SEQ
Internal Memory
4G DDR4 + 32G eMMC
USB Ports
USB3.0*2
Ethernet
RJ-45(10/100/1000Mbps)
WiFi
2.4G+5G
DAC Decoding
Supports up to Stereo DSD512, PCM 768KHz 32Bit
Music File Formats
DSD(DSF, DFF, SACD ISO) Support DST up to DSD512, MP3, APE, WAV, FLAC, AIF, AIFF, AAC, NRG, CUE
Music Services
TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music etc
Music Streaming
Roon Ready, Spotify Connect, TIDAL Connect, DLNA etc Qobuz Connect
Control Methods
On-screen touch control, Android/iPhone/iPad APP control

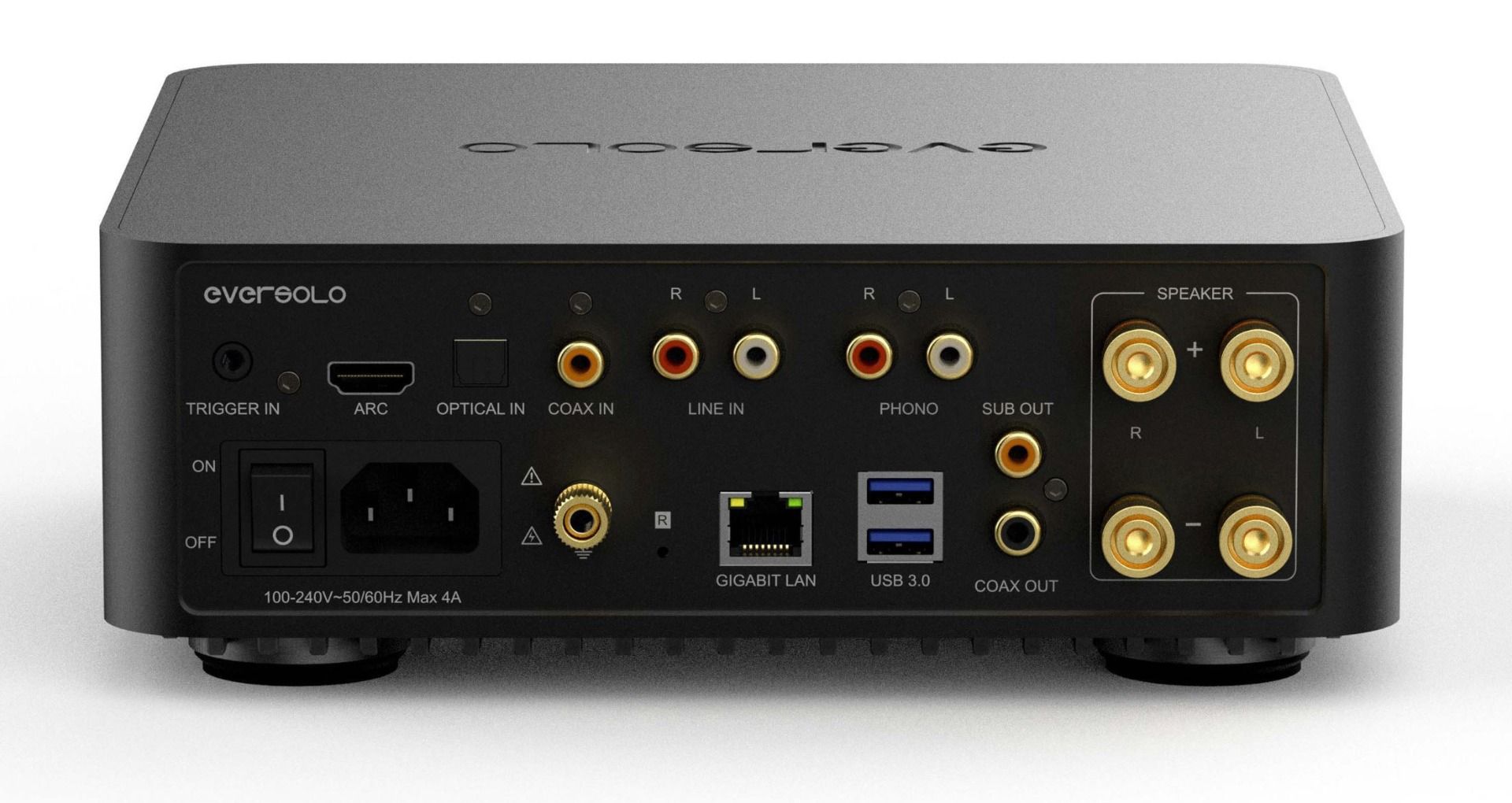

Audio Input and Output
Bluetooth Input
Bluetooth BT5.3, SBC/AAC
HDMI ARC Input
Supports up to Stereo PCM 192KHz 24Bit
Optical/Coaxial Input
Supports up to Stereo PCM 192KHz 24Bit and DOP64
Analog Line In
Maximum input voltage 2VRMS
PHONO Input
Supports MM/MC
USB Audio Output
Supports up to Stereo DSD512 Native and PCM 768KHz 32Bit
(Supports DAC audio devices with UAC standard only)
Coaxial Output
Supports up to Stereo PCM 192KHz 24Bit and DOP64
Subwoofer Output
Adjustable crossover frequency from 40 Hz to 500 Hz
Audio Characteristics
Continuous Output Power
60W RMS@8Ω 110W RMS@4Ω
Amplifier Type
Class D Amplifier
Amplifier Gain
20.8dB
Input Sensitivity
2V
THD(20Hz-20KHz)
<0.0037% 5W at 1KHz
Signal-to-Noise Ratio
>109dB, @A-wt 4Ω 110W
Frequency Response
20Hz-20KHz < ±0.25dB, 20Hz-40KHz < -3dB
Damping Factor
>107
Channel Crosstalk
<-108dB
PHONO
Amplifier gain: MM 60dB MC 74dB
Input sensitivity: MM 5mV MC 0.5mV
RIAA: ±0.5dB, 20Hz-20KHz
Other Information
PSU
AC 110~240V 50/60Hz Max 4A
Dimensions
L 230mm * W 230mm * H 75mm
Weight
Net Weight 2.6Kg/2.9Kg
Packing List
Power Cable*1, Quick Start Guide*1
Color
Black
